• Ultrasound-guided CVC line implantation
• External landmark catheterization for CVC lines
• Insertion skills for PermCath, Hickman catheters and CVP-Cath
• Port access and care
• The neck muscle pad features a clavicle skeleton design, allowing practitioners to locate the needle insertion point through palpation and further enhance accuracy with ultrasound guidance.
• The enhanced ultrasound-compatible material provides better visibility of vascular positions under ultrasound guidance.
• The self-healing neck muscle pad supports up to 50 punctures.
• The aortic pressure and heart rate can be created and adjusted by the hand pump or the Electro-hydraulic Pulse Generator.
• Adding fake blood to the water tank and neck vessel set (SVC) creates a more realistic training environment.
• Under-skin tunneling is applicable on this platform.
• The product comes with pre-set grooves, allowing for the extension and addition of modules for practicing PICC procedures.
• Modular design leads to cost-effective training.
• Realistic appearance provides trainees with more immersive experiences.
• The platform can be carried out using a portable case.

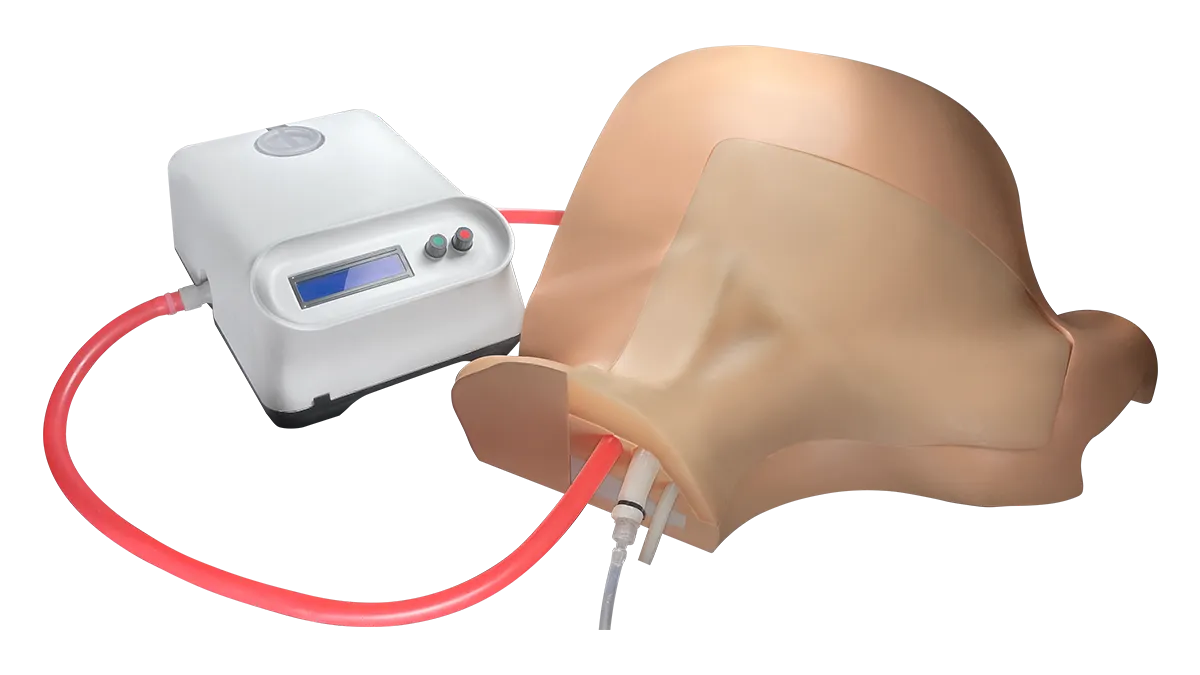

CVC-B02
• Electro-hydraulic Driver Version
• Applicable for ultrasound-guided CVC insertion and Port-A

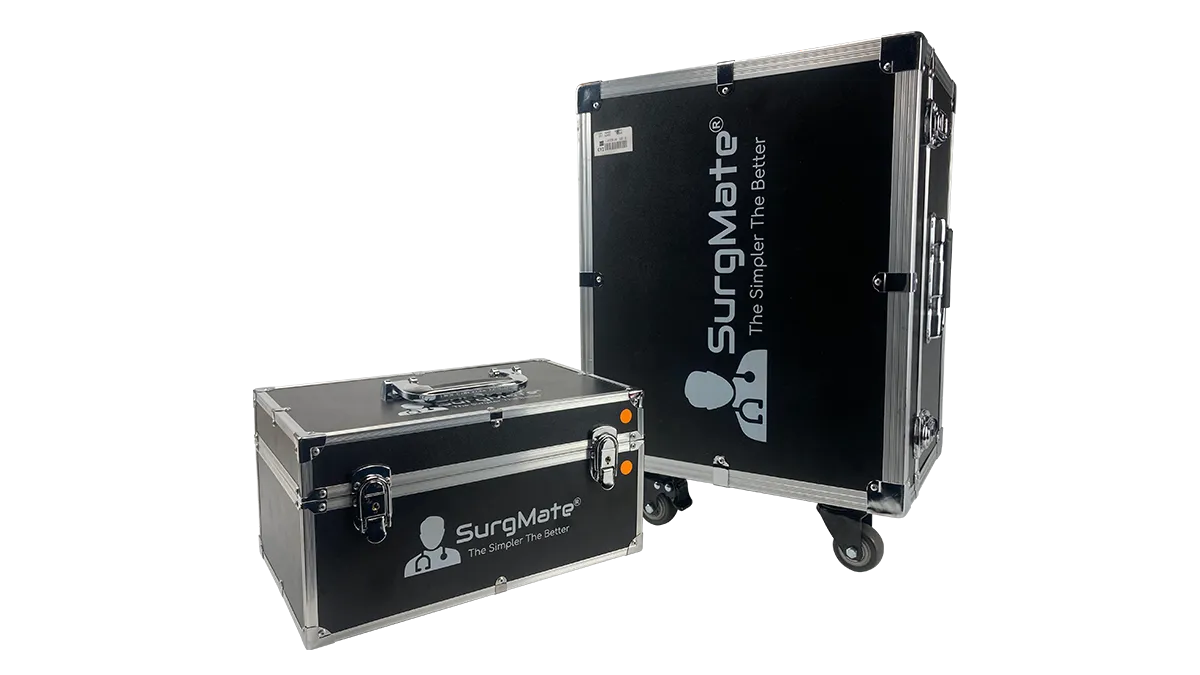

• Includes a portable case, upper body base, all CVC spare parts (CVC-S01 to CVC-S08) and Electro-hydraulic Pulse Generator (PG-B01)

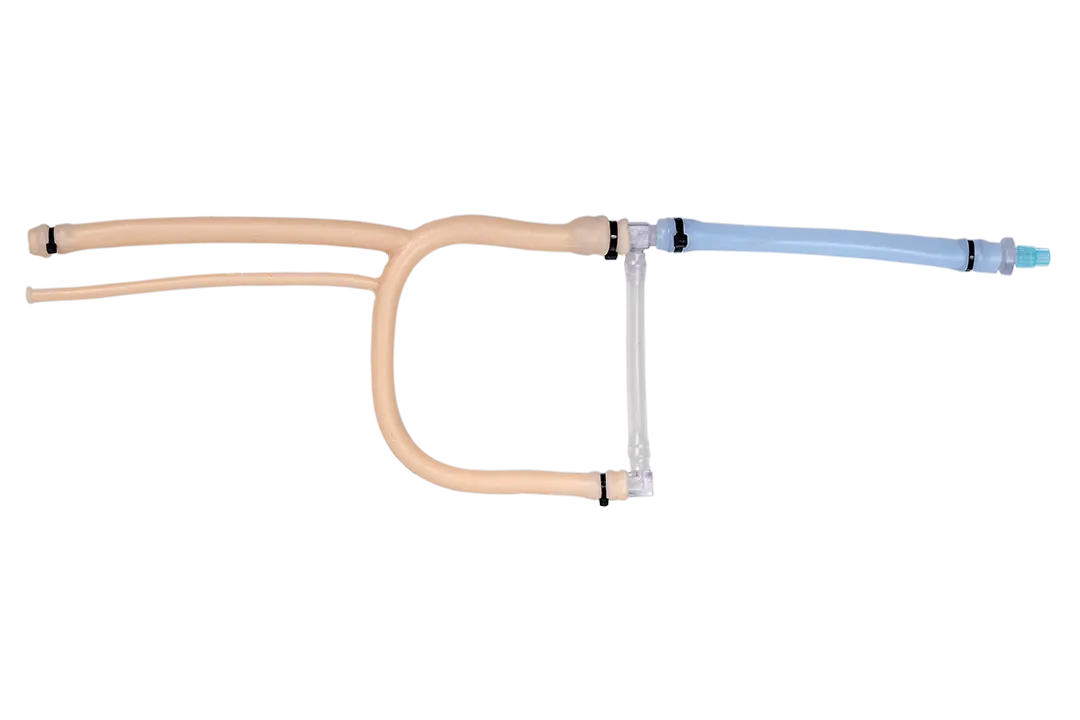

• Neck vessel set (SVC) (CVC-S01)
• Neck muscle pad (CVC-S02)
• Pre-tunneled neck muscle pad (CVC-S02A)
• Neck muscle base (CVC-S03)
• Water tank (CVC-S04)
• Hand pump (backup for creating pulsation manually) (CVC-S05)
• 75 cm carotid artery for hand pump (CVC-S06)
• Extension tubing (CVC-S07)
• Connection tubing (CVC-S08)

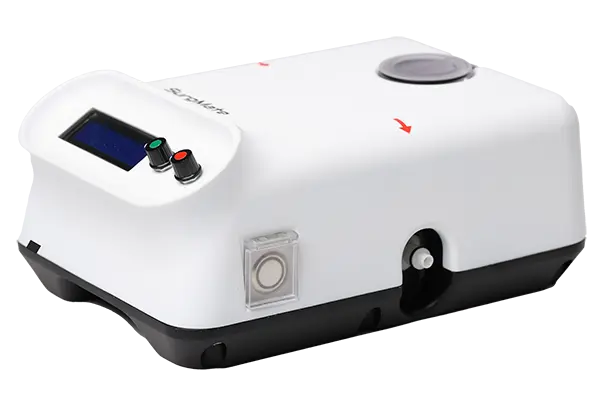

• Electro-hydraulic Pulse Generator (PG-B01)
• Net Dimensions (L×W×H): 37.5 cm × 29 cm × 18 cm
• Net Weight: 3.5 kg
• Gross Dimensions (L×W×H): 54 cm × 37.5 cm × 27 cm
• Gross Weight: 9.5 kg
